BRIEF TECHNOLOGY
Smart VRT Spray 60/100, a portable and easy-to-install flow control system for agricultural sprayers based on Variable Rate Technology (VRT), offers a game-changing solution for precision agriculture. It seamlessly integrates into existing sprayers, allowing farmers to achieve precise and targeted application of agrochemicals without complex modifications. The system combines a user-friendly Smart Control Panel and an advanced VRT Flow Control System connected through a secured WiFi mesh network, enhancing resource efficiency and crop yield. It adapts to various crop types, provides real-time data for decision-making, and compensates for variable travel speeds. This innovation revolutionizes farming by simplifying precision agriculture and maximizing resource utilization. For more detail, see USER’S GUIDE.

SPECIFICATIONS

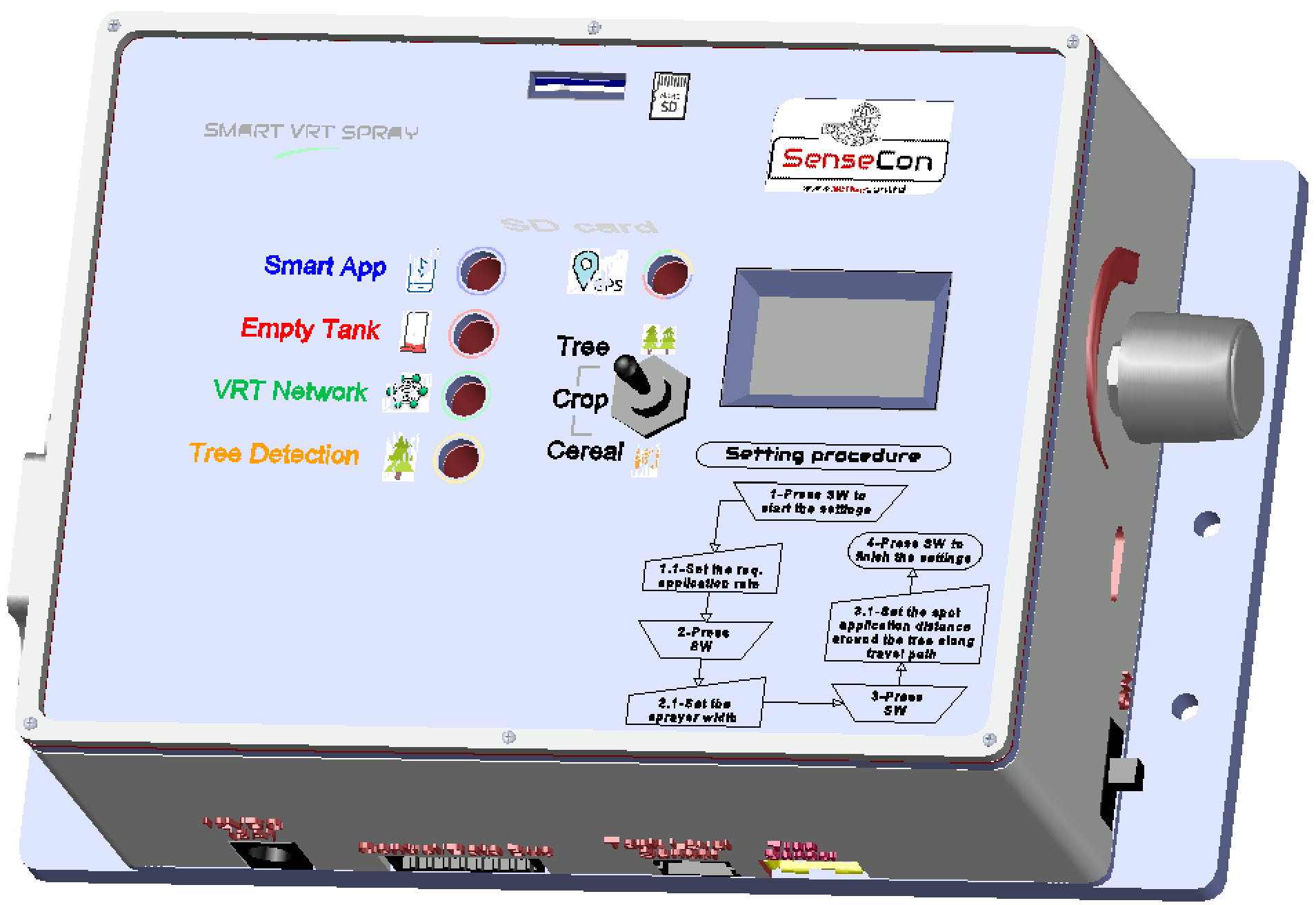

Smart Control Panel (Component 1)
Input power: 12VDC (1A).
GPS enabled.
Data logger (Removable micro SD card up to 32 GB).
0.96″ OLED display.
Product size: L×W×H = 175 mm × 108 mm × 60 mm

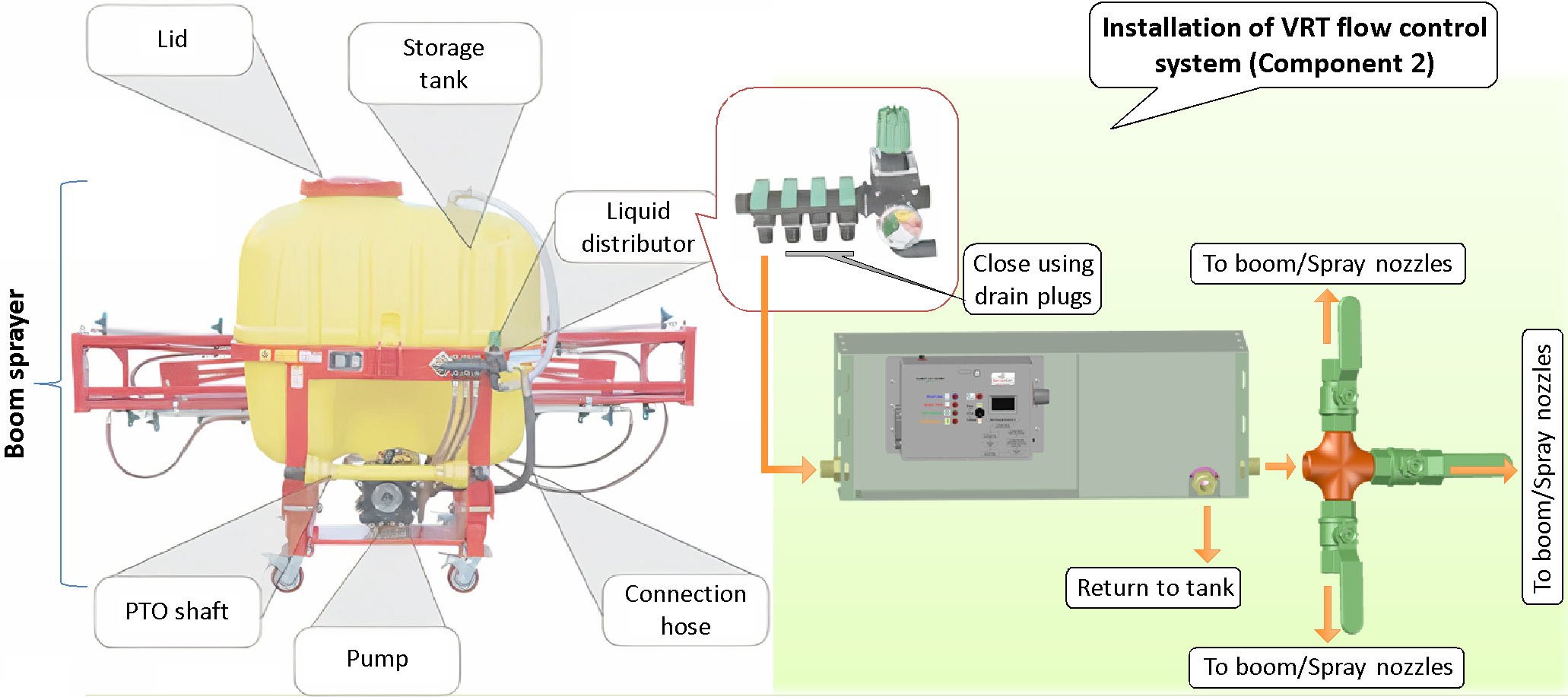

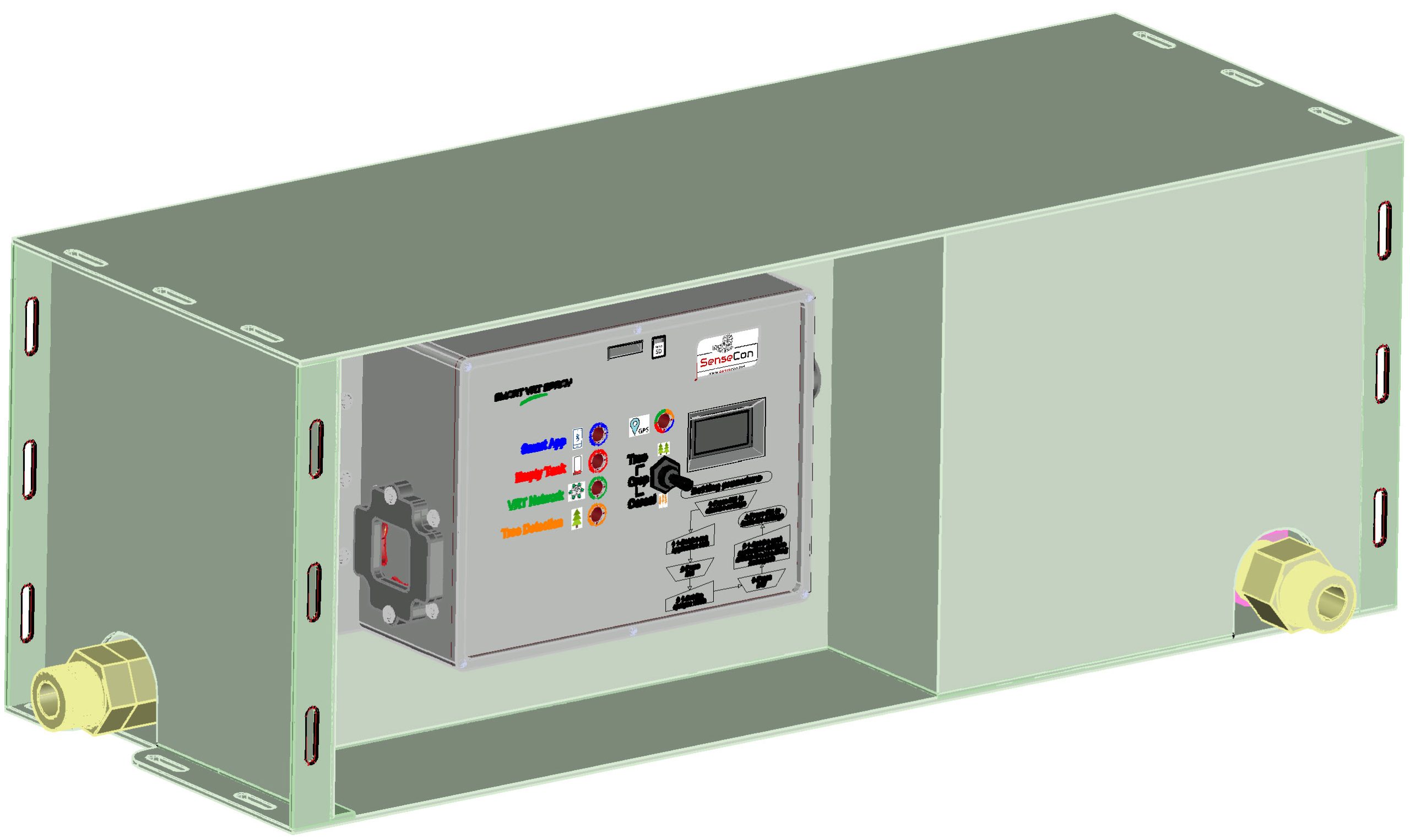

VRT Flow Control System (Component 2)
Input power: 12VDC (5A).
Low tank level sensor.
Ultrasonic tree detector (maximum range 2.5 m).
Better flow control from 2 to 60 L/min allowing the application rate of 29 to 857 L/ha (max. error ±2%) at a travel speed of 7 km/h using Smart VRT Spray 60.
Better flow control from 6 to 100 L/min allowing the application rate of 86 to 1429 L/ha (max. error ±4.2%) at a travel speed of 7 km/h using Smart VRT Spray 100.
Travel speed: 2 to 15 km/h (for details, consult the given charts).
Pipe fitting size: DN 20 (3/4“).
Product size: L×W×H = 453 mm × 163 mm × 165 mm.
